Tandem Axle Trailer Hanger Kit - Double Eye Springs - 2-7k Axles - 3-1/4 in. Front Hanger, 3-1/4 in. Rear Hanger

Product Specs

• Axle Type: Tandem Axle
• Axle Capacity: 2,000 lb to 7,000 lb
• Spring Type: 1-3/4 in. double-eye leaf springs (sold separately)

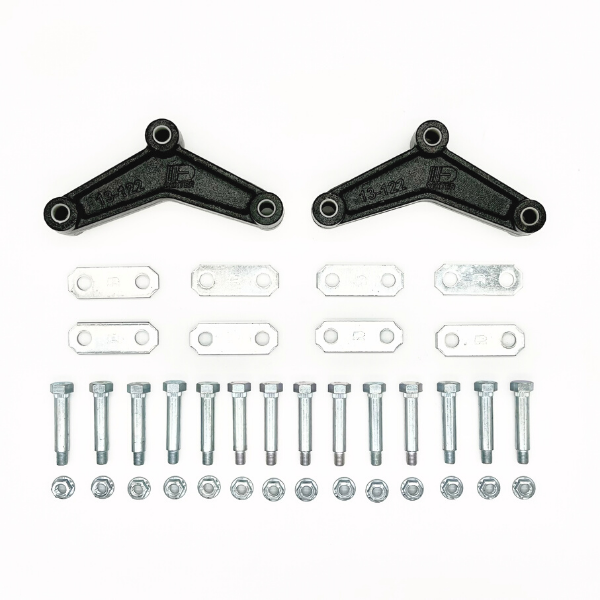

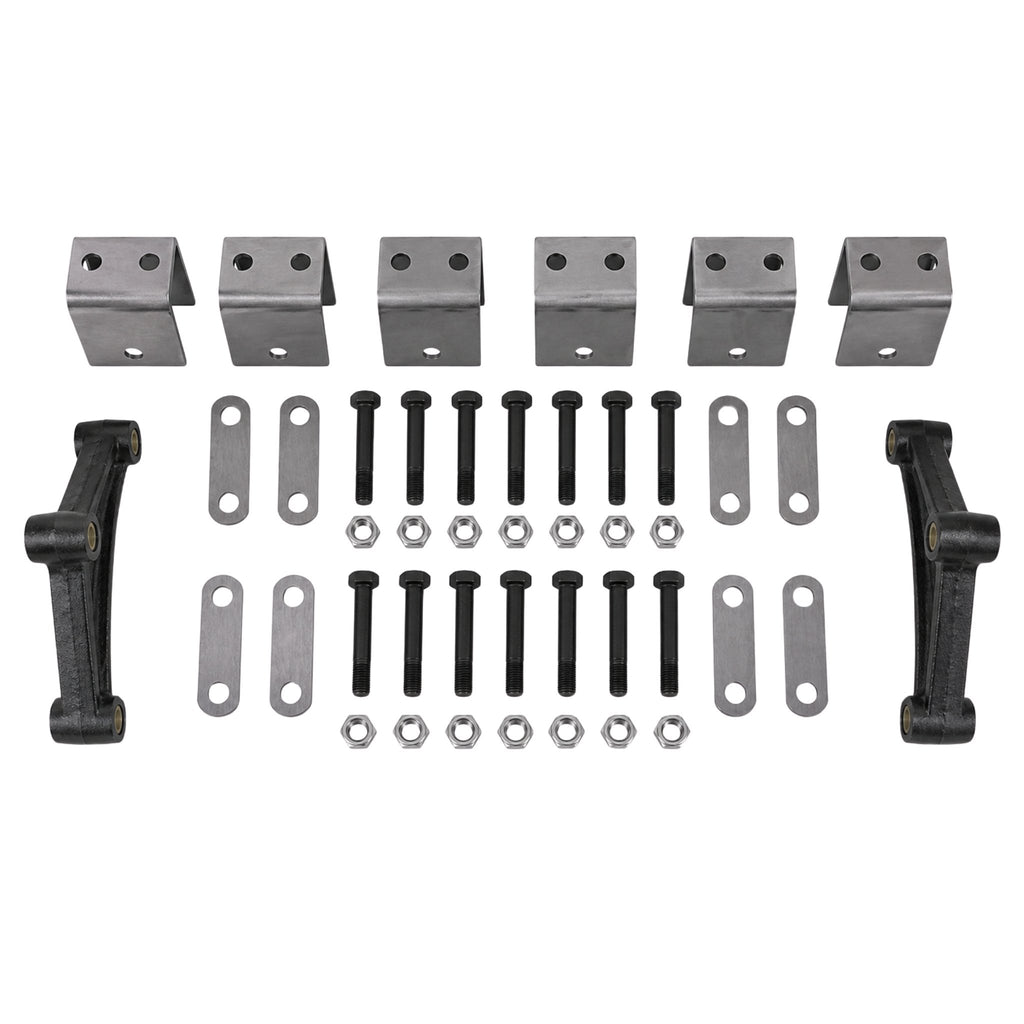

• Includes:
• Front Hangers: (2) 3-1/4 in. tall (28-5)
• Center Hangers: (2) 3-1/4 in. tall (28-5)
• Rear Hangers: (2) 3-1/4 in. tall (28-5)
• Equalizer: (2) 7-3/4 in. (A2252CB)
• Shackle Straps: (8) 2-5/8 in. long (115052)
• Shackle Bolts: (14) 3 in. long x 9/16 in. diameter (9163B)
• Locknuts: (14) 9/16 in. diameter (916DLN)
• Clearance between frame and axle: 4-1/2 in. to 5 in. (depending on axle size)

Product Features

• Designed for use on trailers with 1-3/4 in. wide double eye spring axle suspension.

• Weld-on design creates a solid, permanent mount point for double-eye springs.
