Single Axle Trailer Hanger Kit - Double Eye Springs - 2-7k Axles - 1-1/2 in. Front Hanger, 7/8 in. Rear Hanger

Product Specs

• Axle Type: Single Axle
• Axle Capacity: 2,000 lb to 7,000 lb
• Spring Type: 1-3/4 in. double-eye leaf springs (sold separately)

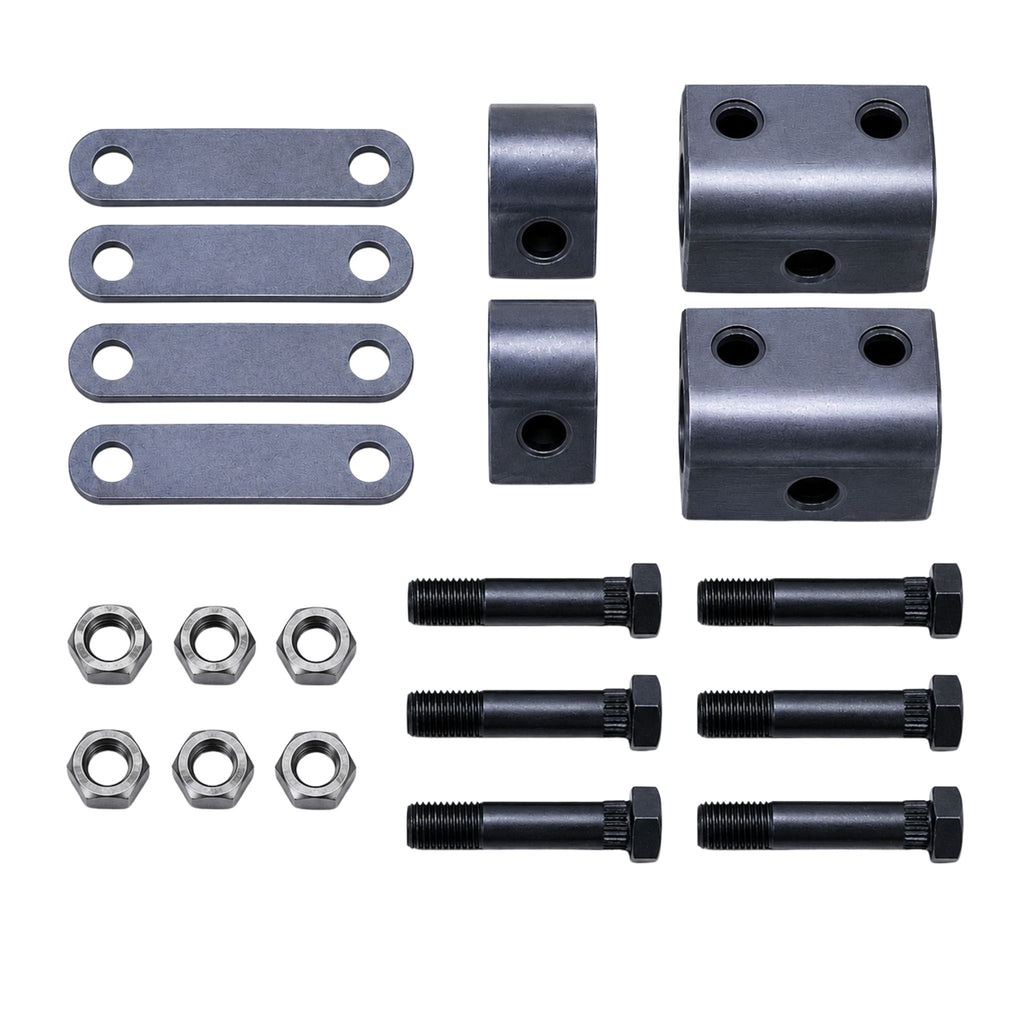

• Includes:
• Front Hangers: (2) 1-1/2 in. tall (115917)
• Rear Hangers: (2) 7/8 in. tall with steel bushings (30-20)
• Shackle Straps: (4) 3-1/8 in. long (115208)
• Shackle Bolts: (6) 3 in. long x 9/16 in. diameter (9163B)
• Locknuts: (6) 9/16 in. diameter (916DLN)
• Clearance between frame and axle: 4-1/4 in. or 4-1/2 in. (depending on axle size)

Product Features

• Designed for use on trailers with 1-3/4 in. wide double eye spring axle suspension.
• Includes steel-bushed rear hangers: Reduces wear at pivot points.
• Weld-on design creates a solid, permanent mount point for double-eye springs.
