Description
Product Specs
- Capacity: 3,500 lb
- Hubface (HF) = 85 in.
- Spring Center (SC) = 70 in.
- Tube Size: 2-3/8"
- Tube Type: Straight
- Bolt Pattern: 5-4.5"
- Stud Size: 1/2"-20
- Spring Type: Double Eye
- Spring Width: 1-3/4"
- Spring Length: 26"
- Spring Capacity: 1,750 lbs.
- Spring Mount Position: Underslung
- Grease Cap Type: EZ Lube
Product Features
- Replaceable unitized oil seal
- Precision machined bearings & races
- High-strength axle tube for industrial utility trailer axles
- Precision-machined spindles, made of forged carbon steel
- Spindles are friction welded into axle tubes for strength and alignment
Axles are shipped palletized and pre-assembled for easy installation.
Disclaimer:
Please be advised that all axle purchases are final and non-refundable. We encourage our customers to ensure the accuracy of their measurements before completing their order. It is essential to ensure the specifications required for your unit to avoid any inconvenience, as we cannot accept returns or exchanges due to incorrect sizing. Your attention to detail will help ensure that the product you receive meets your needs and expectations.

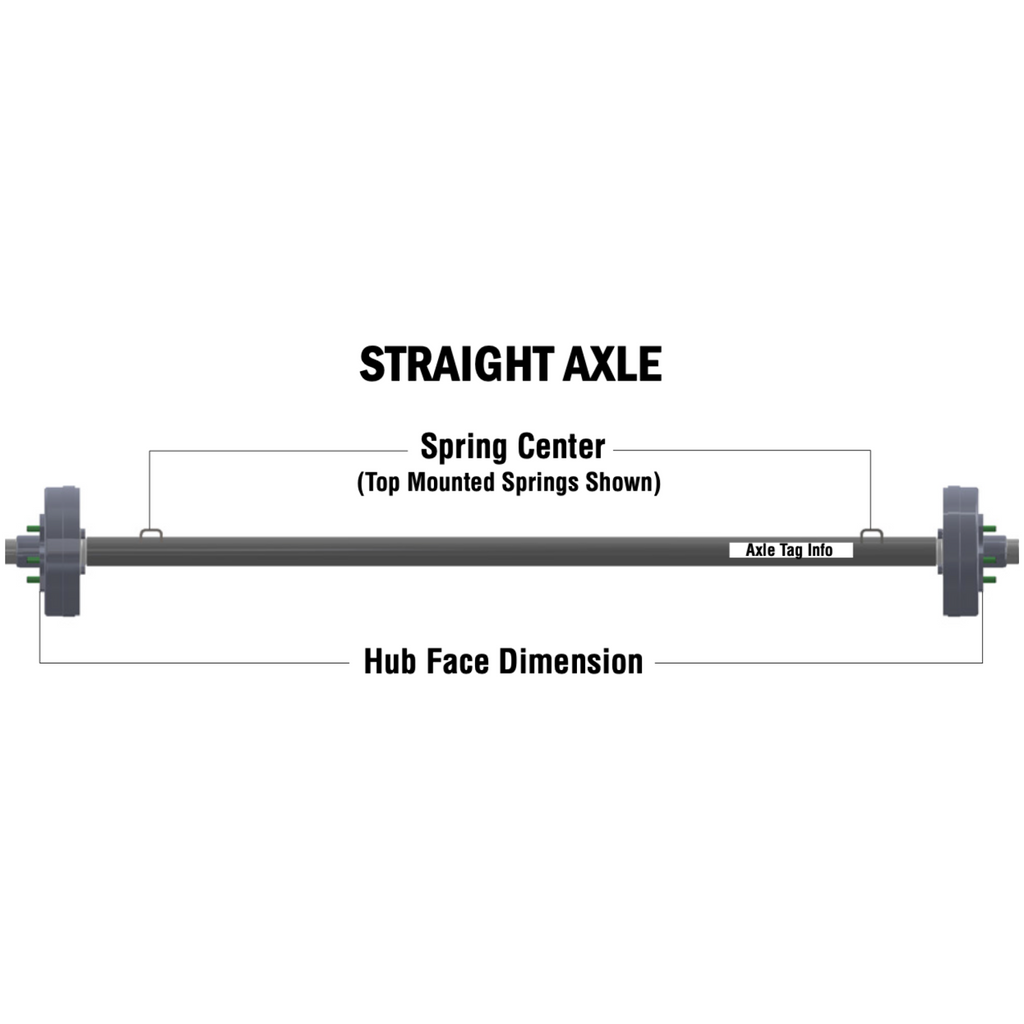

How to Properly Measure a Straight Sprung Trailer Axle:

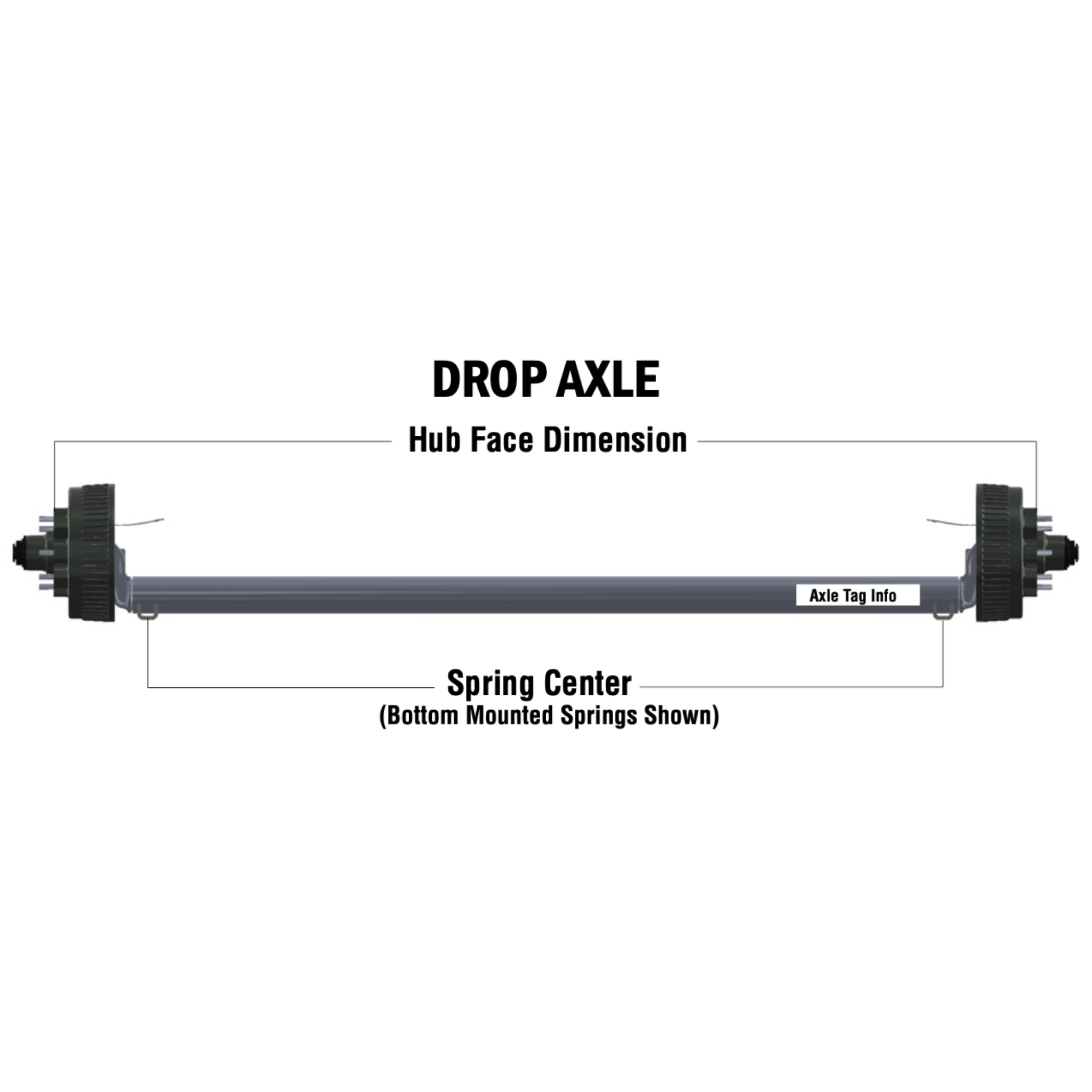

How to Properly Measure a 4" Drop Sprung Trailer Axle:
